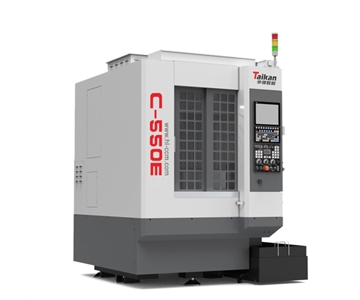

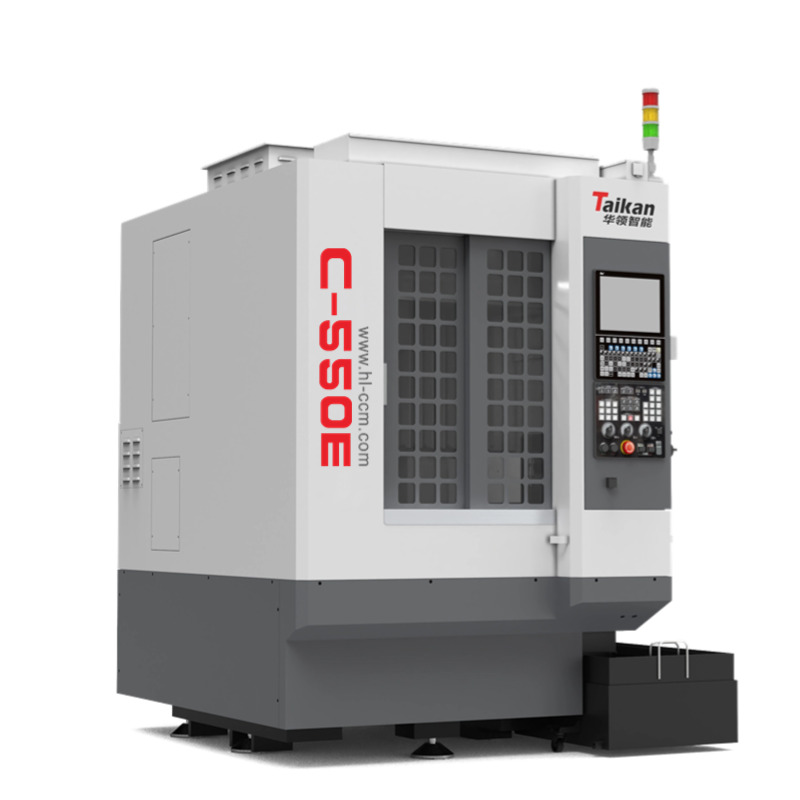

C-550E Single-spindle Engraving Processing Machine
Ⅰ） Product Characteristics
1）Syntec CNC System
Equipped with a Syntec CNC system, offering precision and reliability.
2）Fixed-Beam Gantry Design
Features a fixed-beam gantry structure with a cast iron bed and beam for high rigidity and stability.
3）High-Precision Electric Spindle
Standard configuration includes a high-precision 36,000 RPM electric spindle (HSK E32).
4）Servo Tool Magazine
Comes standard with a 16-tool servo-driven tool magazine, with an optional 21-tool magazine for added capacity.
Ⅱ）Application Area
The C-550E is ideal for the precision machining of copper electrodes, small molds, small metal components, 3C products, precision parts for aerospace, medical instruments, and small copper components. It excels in producing highly accurate and complex parts across a range of industries.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 550*500 |
| Distance from table to spindle nose (mm) | 100~300 | |
| Maximum load-bearing weight ( Kg) | 150 | |
| journey | X-direction travel (mm) | 550 |
| Travel in Y direction (mm) | 450 | |
| Z travel (mm) | 200 | |
| Spindle | Spindle power (K w) | 6.0 |
| Spindle maximum speed (rpm) | 36 000 | |
| Spindle diameter (mm) | φ100 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | HSK-E32 | |
| Feed rate | Maximum dry run feed speed (m/min) | 30 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.004 | |
| Tool magazine | Tool magazine capacity | 16T |
| Tool magazine form | Semi-umbrella servo tool magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 11 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
1890*1860*2200 |
| Weight (Approx. weight: Kg) | 2700 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
Photos and information of products in the picture album are for your reference only.and they may not refect the actual products. Our ablums and products are subject to change without prior notice.
