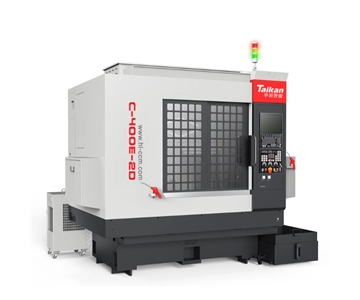

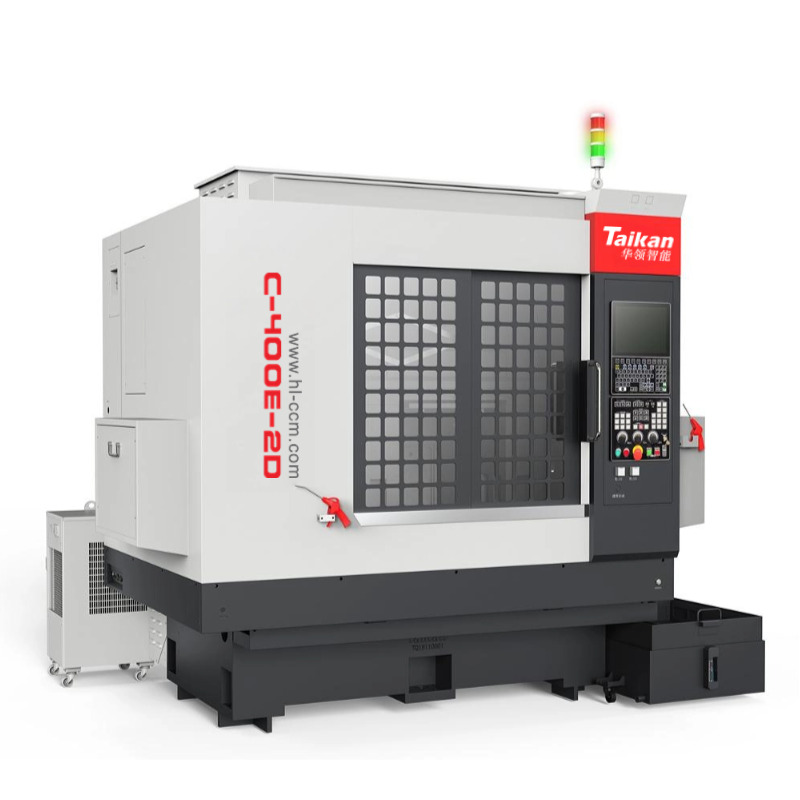

C-400E-2D Dual-channel Engraving Processing Machine
Ⅰ） Product Characteristics
1）Taikan CNC System
Equipped with the Taichung CNC system, offering precise and reliable control.
2）Cast Iron Bed with Aging Treatment
The cast iron bed is treated for stability, and the beam features an M-type three-point support, providing strong rigidity and minimizing deformation.
3）Independent Dual-Spindle Travel
Each channel operates independently, allowing multiple products to be machined simultaneously without interference. Independent tuning and compensation ensure high precision.
4）18-Tool Servo Tool Magazine
The tool magazine supports a wide variety of machining processes such as milling, drilling, and tapping with high efficiency.
Ⅱ）Application Area
The C-400E-2D is ideal for mass production of small metal parts, fine shape finishing, and machining side holes for mobile phone frames. It is also suited for producing watch bezels and electronic cigarette casings.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 400*400 |
| Distance from table to spindle nose (mm) | 210~410 | |
| Maximum load-bearing weight ( Kg) | 100 | |
| journey | X-direction travel (mm) | 400 |
| Travel in Y direction (mm) | 400 | |
| Z travel (mm) | 200 | |
| Spindle | Spindle power (K w) | 4.0 |
| Spindle maximum speed (rpm) | 40 000 | |
| Spindle diameter (mm) | φ80 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | ISO 20 | |
| Feed rate | Maximum dry run feed speed (m/min) | 15 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.004 | |
| Tool magazine | Tool magazine capacity | 18T*2 |
| Tool magazine form | Semi-umbrella servo tool magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 15 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
1600*2600*2130 |
| Weight (Approx. weight: Kg) | 3800 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
Photos and information of products in the picture album are for your reference only.and they may not refect the actual products. Our ablums and products are subject to change without prior notice.
