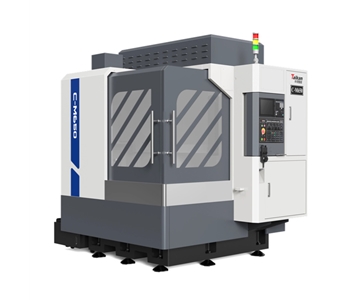

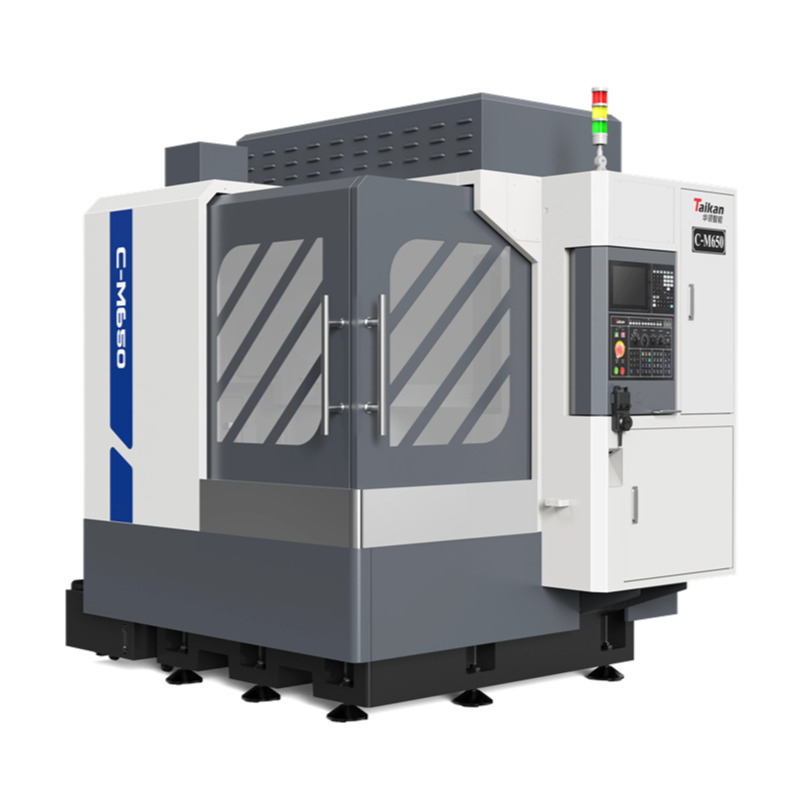

C-M650 Single-spindle Engraving Processing Machine
Ⅰ） Product Characteristics
1）Mitsubishi E80A CNC System
Powered by the high-performance Mitsubishi E80A CNC system for precision and control.
2）Gantry-Style Mineral Casting Bed and Beam
The bed and beam are constructed from mineral casting, offering superior vibration resistance for stable machining.
3）High-Precision Components
Standard configuration includes NSK ball screws and THK linear guides, ensuring stable and reliable machining accuracy.
4）Optional Accessories
Offers optional accessories such as a linear scale and probe to meet various precision requirements.
5）16-Tool Servo Tool Magazine
Equipped with a 16-tool servo-driven tool magazine for efficient tool changes.
Ⅱ）Application Area
The C-M650 is ideal for the precision machining of copper electrodes, molds, precision parts, medical instruments, and precision instruments. It is specifically designed for industries that require high-precision components.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 600*500 |
| Distance from table to spindle nose (mm) | 120~380 | |
| Maximum load-bearing weight ( Kg) | 300 | |
| journey | X-direction travel (mm) | 600 |
| Travel in Y direction (mm) | 500 | |
| Z travel (mm) | 260 | |
| Spindle | Spindle power (K w) | 8.5 |
| Spindle maximum speed (rpm) | 30 000 | |
| Spindle diameter (mm) | φ120 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | HSK-E40 | |
| Feed rate | Maximum dry run feed speed (m/min) | 15 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.003 | |
| Tool magazine | Tool magazine capacity | 16T |
| Tool magazine form | Semi-umbrella servo tool magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 13 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
2230*1820*2350 |
| Weight (Approx. weight: Kg) | 4800 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
