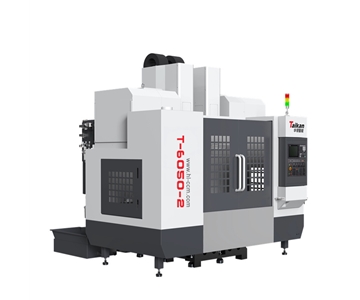

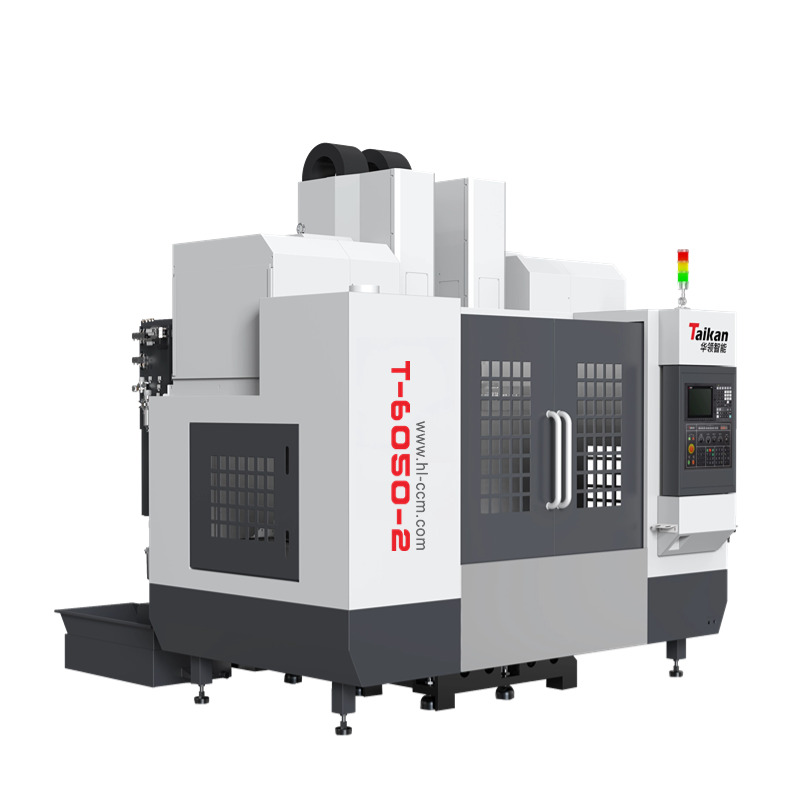

T-6050-2 Dual-spindle Vertical Processing machine
Ⅰ） Product Characteristics
1）Cast Iron Bed and Beam
The machine is constructed with a cast iron bed and beam, providing high rigidity and stable precision over time.
Equipped with the high-performance and reliable Mitsubishi M80B control system, ensuring superior control and stability.
3）Dual 24-Tool Arm-Type Tool Magazine
Features dual 24-tool arm-type tool magazines, significantly improving machining efficiency.
4）Generous XYZ1/Z2 Travel
XYZ1/Z2 axis travel of 600500600/600mm allows for the machining of large-sized parts.
5）Simultaneous Dual-Spindle Machining
Both spindles can simultaneously process multiple products, providing high efficiency and fast response times.
Ⅱ）Application Area
1）The T-6050-2 is ideal for the mass production of box-type products, hardware components, and new energy box-type products.
2）It is also suitable for the mass production of 5G box-type products, valve bodies, and disk-shaped components.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 1400*500 |
| Distance from table to spindle nose (mm) | 180~780 | |
| Maximum load-bearing weight ( Kg) | ||
| journey | X-direction travel (mm) | 600 |
| Travel in Y direction (mm) | 500 | |
| Z travel (mm) | 600 | |
| Spindle | Spindle power (K w) | 7.5/11 |
| Spindle maximum speed (rpm) | 12 000 | |
| Spindle diameter (mm) | φ150 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | BT40 | |
| Feed rate | Maximum dry run feed speed (m/min) | 48 |
| Maximum cutting feed rate (m/min) | 20 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.008 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.005 | |
| Tool magazine | Tool magazine capacity | 24T*2 |
| Tool magazine form | Knife arm type knife magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 27 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
|
| Weight (Approx. weight: Kg) | 7800 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
