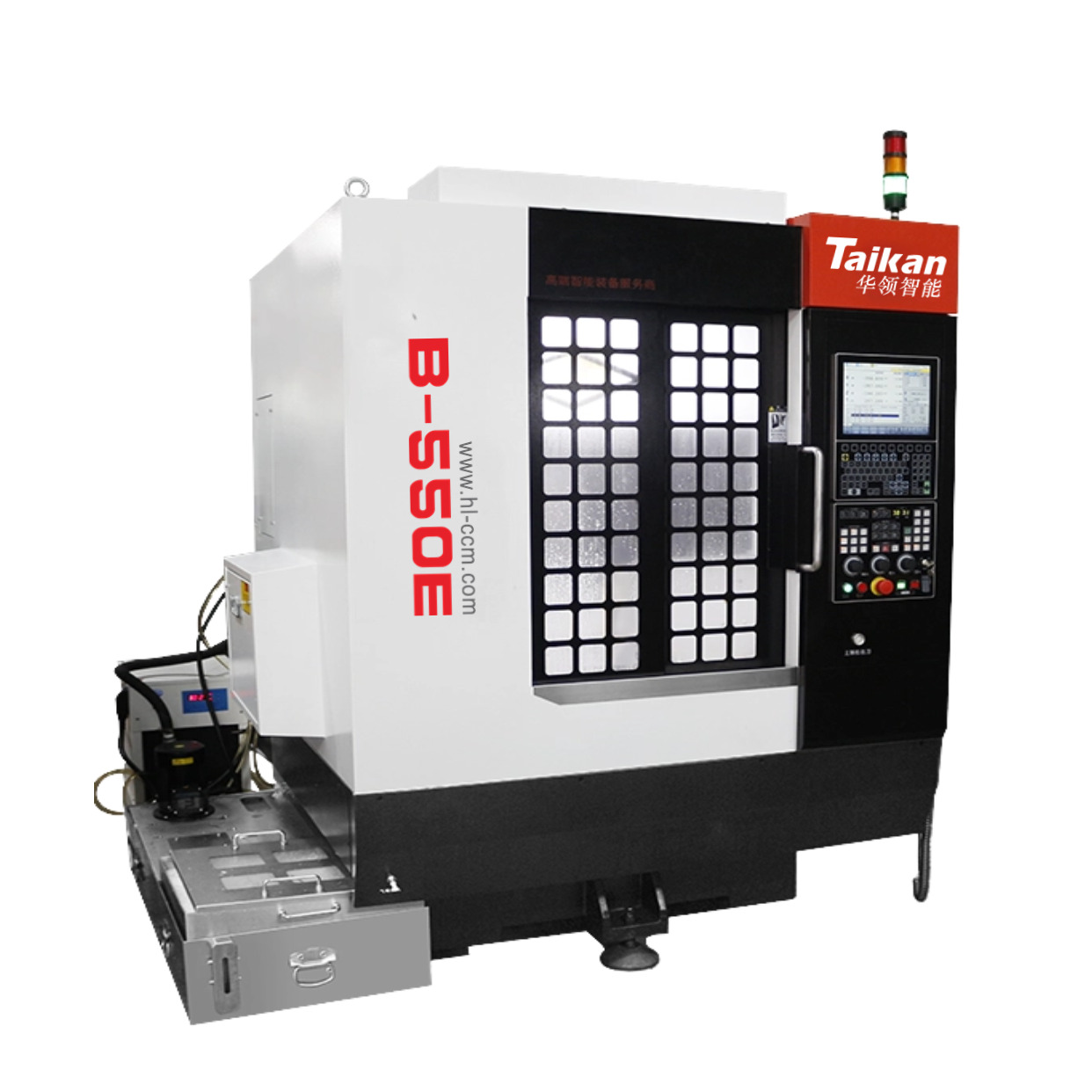

B-550E Single-spindle Engraving Processing Machine
Ⅰ） Product Characteristics
1）Taikan CNC System
Equipped with the Taichung CNC system, ensuring high precision and control.
2）High-Speed Electric Spindle
Features a high-speed electric spindle for efficient and accurate machining.
3）Cast Iron Structure
The cast iron body ensures high rigidity, providing stability during high-speed operations.
4）13-Tool Servo Tool Magazine
Equipped with a 13-tool servo-driven tool magazine for multi-process machining.
Ⅱ）Application Area
The B-550E is designed for precision grinding of brittle and hard materials such as TFT glass, automotive glass, TV frames, large sheet components, glass, ceramics, and sapphire.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 550*450 |
| Distance from table to spindle nose (mm) | 195~395 | |
| Maximum load-bearing weight ( Kg) | 100 | |
| journey | X-direction travel (mm) | 550 |
| Travel in Y direction (mm) | 450 | |
| Z travel (mm) | 200 | |
| Spindle | Spindle power (K w) | 6.0 |
| Spindle maximum speed (rpm) | 36 000 | |
| Spindle diameter (mm) | φ100 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | HSK-E32 | |
| Feed rate | Maximum dry run feed speed (m/min) | 15 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.004 | |
| Tool magazine | Tool magazine capacity | 13T |
| Tool magazine form | Semi-umbrella servo tool magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 10.5 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
1880*1860*2200 |
| Weight (Approx. weight: Kg) | 2700 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
