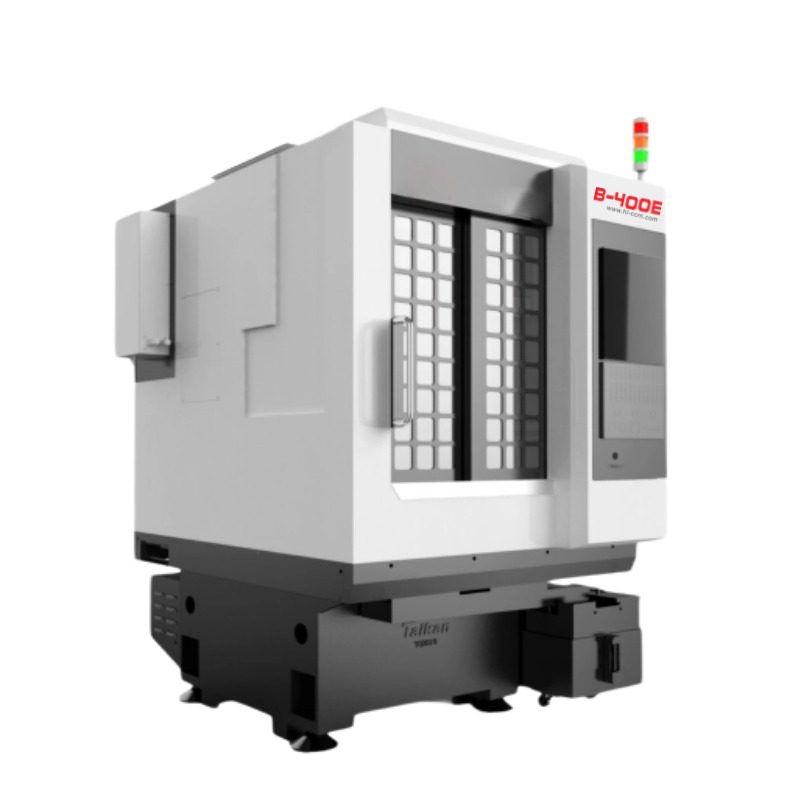

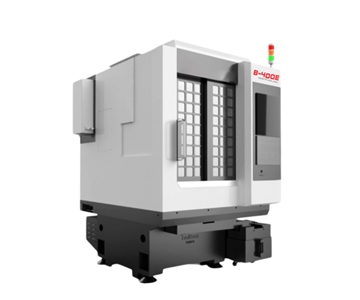

B-400E Single-spindle Engraving Processing Machine
Ⅰ） Product Characteristics
1）Taikan CNC System
Equipped with the high-performance Taichung CNC system for reliable control and precision.
2）Cast Iron Bed and Beam
The machine’s cast iron bed and beam provide high rigidity, ensuring stable machining performance.
3）High-Precision Electric Spindle
Standard configuration includes a high-precision electric spindle for superior accuracy in machining tasks.
4）10-Tool Servo Tool Magazine
Comes with a 10-tool servo-driven tool magazine to enhance machining efficiency.
Ⅱ）Application Area
The B-400E is ideal for drilling and fine shaping of non-metal materials such as mobile phone glass and composite decorative parts.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 400*400 |
| Distance from table to spindle nose (mm) | 110~260 | |
| Maximum load-bearing weight ( Kg) | 100 | |
| journey | X-direction travel (mm) | 400 |
| Travel in Y direction (mm) | 400 | |
| Z travel (mm) | 150 | |
| Spindle | Spindle power (K w) | 4.0 |
| Spindle maximum speed (rpm) | 40 000 | |
| Spindle diameter (mm) | φ80 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | ISO 20 | |
| Feed rate | Maximum dry run feed speed (m/min) | 15 |
| Maximum cutting feed rate (m/min) | 8 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.004 | |
| Tool magazine | Tool magazine capacity | 15T |
| Tool magazine form | Semi-umbrella servo tool magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 8.5 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
1550*1450*2082 |
| Weight (Approx. weight: Kg) | 1700 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
