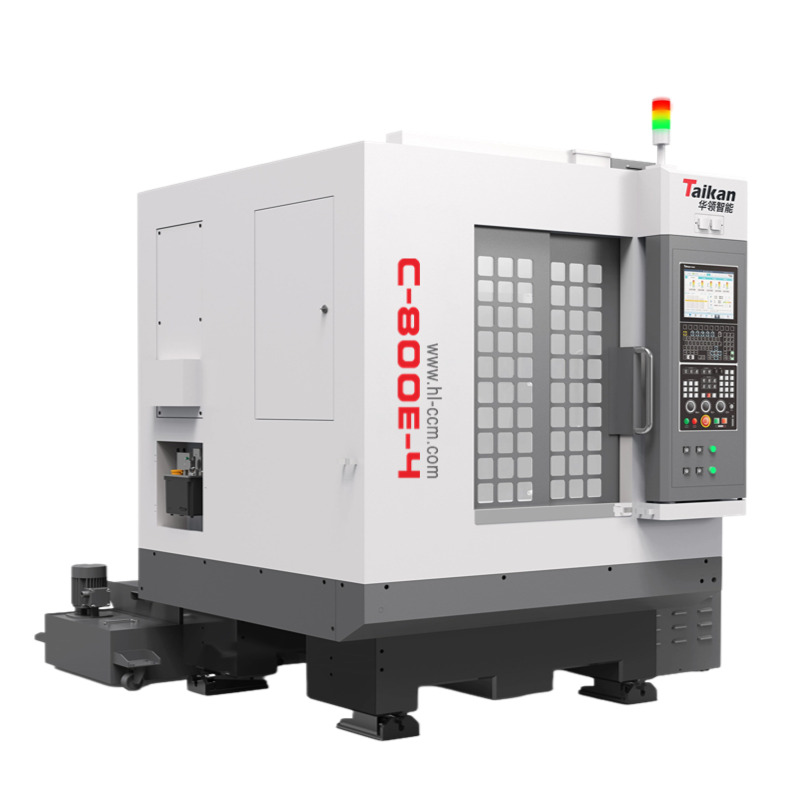

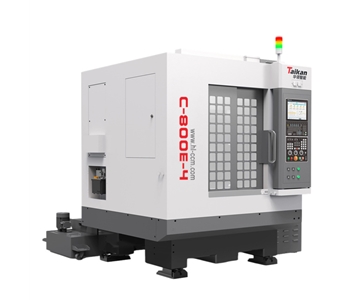

C-800E-2/3/4 Multi-spindle Engraving Processing Machine
Ⅰ） Product Characteristics
1）Natural Granite Bed and Beam
The machine's bed and beam are made from natural granite, providing excellent vibration absorption and corrosion resistance.
2）Customizable High-Speed Precision Spindles
Different high-speed precision spindles can be selected based on specific product processing requirements, offering flexibility in operations.
3）25-Tool Linear Tool Magazine
Standard configuration includes a 25-tool linear tool magazine with a sluice-gate style protective door that fully isolates the tool magazine from the machining area, offering superior chip protection. The tool change process is fast, with a low failure rate, ensuring high efficiency.
Ⅱ）Application Area
1）C-800E-2/3/4 is ideal for the mass production of small aluminum alloy components for 3C consumer electronics, such as mobile phone camera brackets, buttons, and smartwatch housings.
2）Suitable for machining medium to large-sized aluminum alloy components like mobile phone frames and tablet frames for 3C consumer electronics.
3）Also well-suited for the mass production of panels and cover parts in industries such as instrumentation, electronics, and electrical appliances.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 840*500 |
| Distance from table to spindle nose (mm) | 85~235 | |
| Maximum load-bearing weight ( Kg) | ||
| journey | X-direction travel (mm) | 210 |
| Travel in Y direction (mm) | 500 | |
| Z travel (mm) | 150 | |
| Spindle | Spindle power (K w) | 2.5 |
| Spindle maximum speed (rpm) | 60 000 | |
| Spindle diameter (mm) | φ62 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | T11 | |
| Feed rate | Maximum dry run feed speed (m/min) | 30 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.004 | |
| Tool magazine | Tool magazine capacity | 25T *4 |
| Tool magazine form | Straight line knife magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 18 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
|
| Weight (Approx. weight: Kg) | 3200 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
