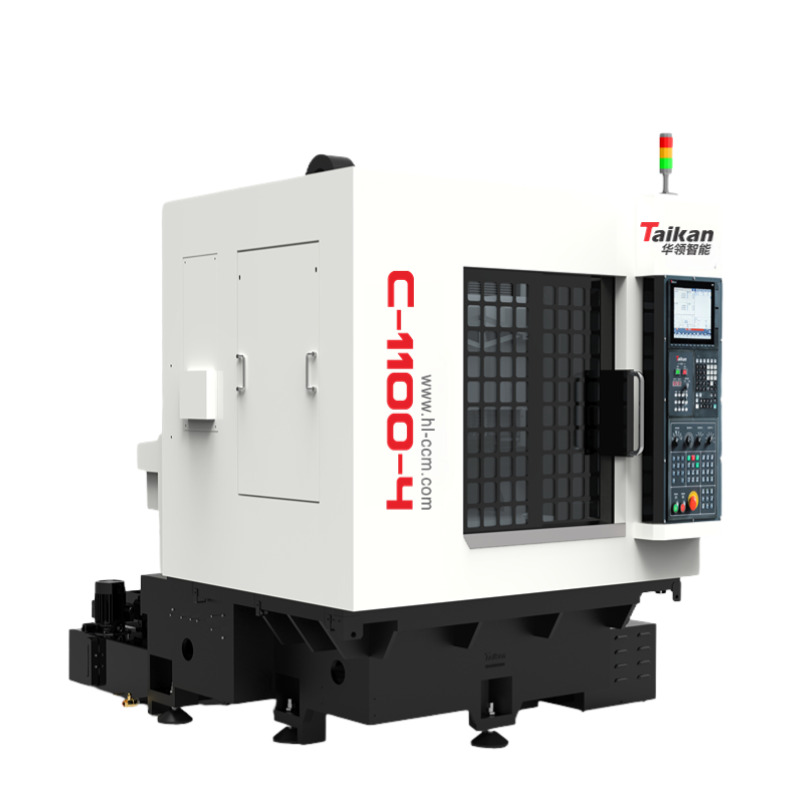

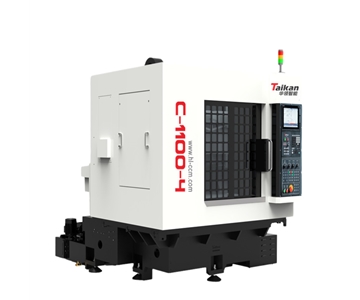

C-1100-2/3/4 Multi-spindle Engraving Processing Machine
Ⅰ） Product Characteristics
1）Cast Iron Bed and Beam Structure
The cast iron bed and beam are optimized using finite element analysis (FEA) for superior stability and precision retention compared to similar machines.
2）High-Speed φ100/ISO25 Precision Spindle
Standard configuration includes a high-speed φ100/ISO25 spindle, which is versatile enough to handle both roughing and finishing operations.
3）21-Tool Chain-Type Tool Magazine
Comes with a 21-tool chain-type tool magazine that offers ample capacity and excellent protection, supporting stable and high-speed machining of complex parts.
4）Four-Spindle Rigid Tapping Capability
Capable of performing rigid tapping with four spindles simultaneously, improving productivity for tapping operations.
Ⅱ）Application Area
1）C-1100-2/3/4 is ideal for roughing and finishing processes of aluminum parts, housings, and radiators in the new energy vehicle industry.
2）It is also well-suited for the roughing and finishing of panels, housings, and box components in the 3C (computer, communication, and consumer electronics) and 5G industries.
3）Ideal for machining panels, housings, and box components in industries such as instrumentation, light textiles, and electronics.
4）Suitable for the roughing and finishing of laptop upper shells, middle frames, tablet casings, and other notebook-related products.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 1100*500 |
| Distance from table to spindle nose (mm) | 180~330/380 | |
| Maximum load-bearing weight ( Kg) | ||
| journey | X-direction travel (mm) | 280 |
| Travel in Y direction (mm) | 500 | |
| Z travel (mm) | 150 or 200 | |
| Spindle | Spindle power (K w) | 6.0/7.5 |
| Spindle maximum speed (rpm) | 36 000/30 000 | |
| Spindle diameter (mm) | φ100/120 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | ISO 25/BT30 | |
| Feed rate | Maximum dry run feed speed (m/min) | 18 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.004 | |
| Tool magazine | Tool magazine capacity | 16T *4/ 21T *4 |
| Tool magazine form | Chain servo tool magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 32 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
|
| Weight (Approx. weight: Kg) | 4000 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
