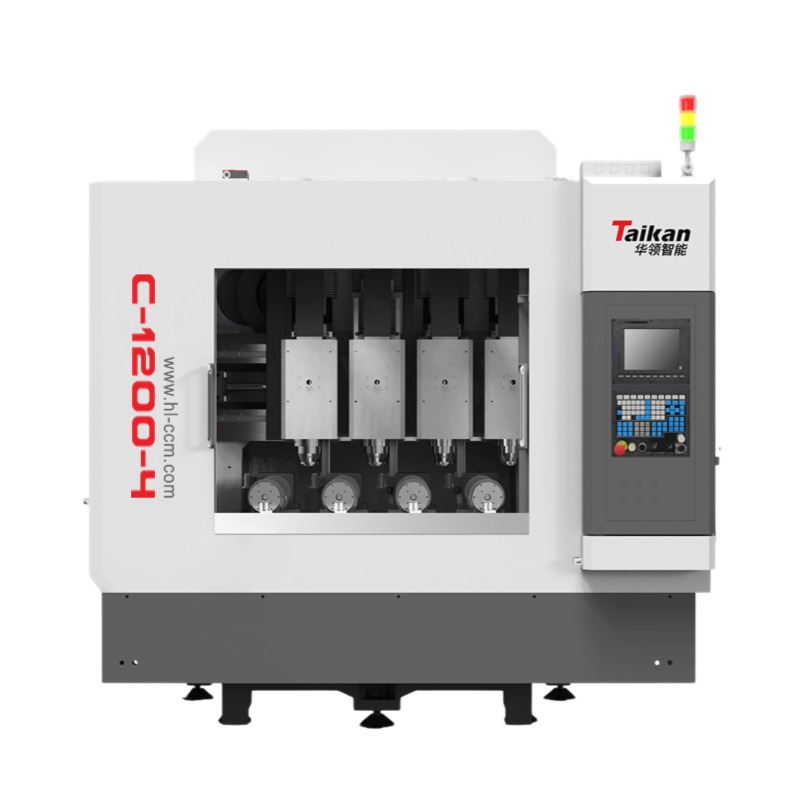

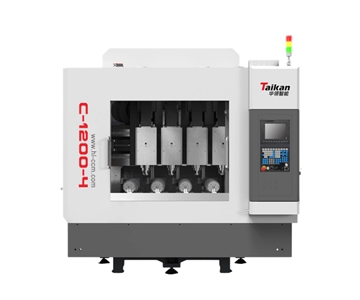

C-1200-4 Multi-spindle Engraving Processing Machine
Ⅰ） Product Characteristics
1）Cast Iron Bed and Beam Structure
The machine’s bed and beam are made from cast iron, and its structure is optimized using finite element analysis (FEA). This provides superior precision stability compared to similar machines.
2）High-Power, High-Torque Precision Electric Spindle
Equipped with a high-power, high-torque spindle capable of handling both roughing and finishing processes with precision.
3）21-Tool Chain-Type Tool Magazine
Comes standard with a large 21-tool chain-type tool magazine that offers excellent protection and supports stable, high-speed machining of complex parts.
4）Four-Spindle Rigid Tapping Capability
Capable of simultaneous rigid tapping with four spindles, enhancing productivity for tapping operations.
Ⅱ）Application Area
1）C-1200-3/4 is ideal for roughing and finishing processes of aluminum parts, housings, and radiators in the new energy vehicle industry.
2）Suitable for roughing and finishing panels, housings, and box components in the 3C (computer, communication, and consumer electronics) and 5G industries.
3）It is also ideal for machining panels, housings, and box components in industries such as instrumentation, light textiles, and electronics.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 1200*600 |
| Distance from table to spindle nose (mm) | 250~450 | |
| Maximum load-bearing weight ( Kg) | ||
| journey | X-direction travel (mm) | 300 |
| Travel in Y direction (mm) | 500 | |
| Z travel (mm) | 200 | |
| Spindle | Spindle power (K w) | 7.5 |
| Spindle maximum speed (rpm) | 30 000 | |
| Spindle diameter (mm) | φ120 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | BT30 | |
| Feed rate | Maximum dry run feed speed (m/min) | 30 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.004 | |
| Tool magazine | Tool magazine capacity | 16T*4/21T*4 |
| Tool magazine form | Chain servo tool magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 48 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
|
| Weight (Approx. weight: Kg) | 4600 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
