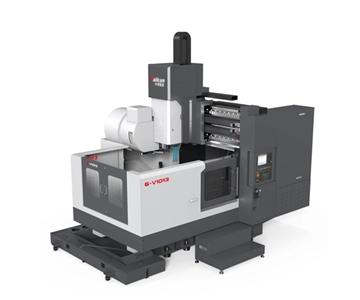

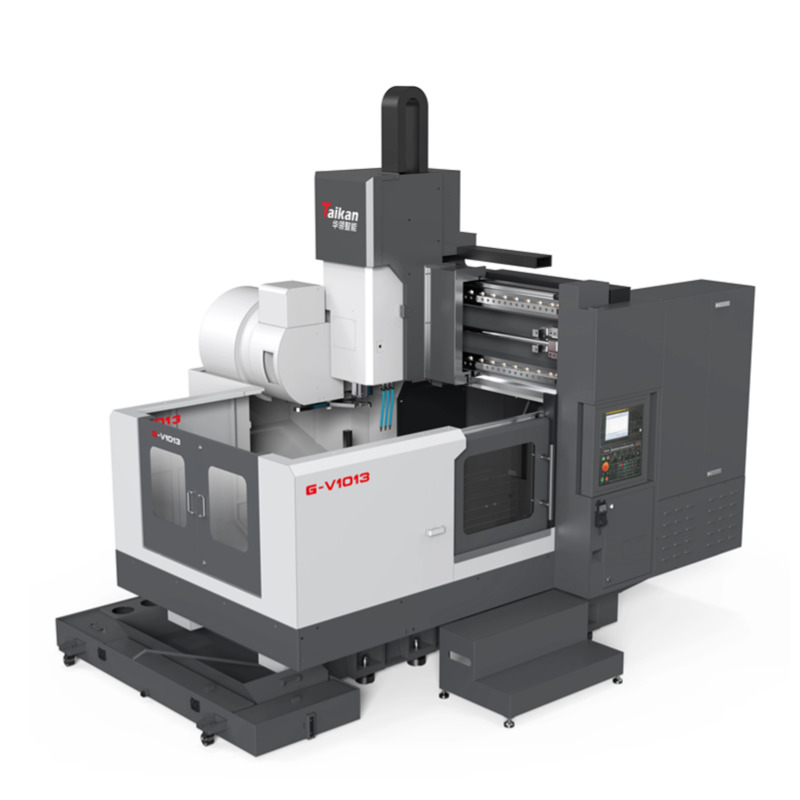

G-V1013 Gantry Processing Machine
Ⅰ） Product Characteristics
1）Compact and Efficient Design
The machine is designed with a rational and compact layout, occupying minimal floor space.
2）Robust Cast Base and High-Rigidity Beam
The machine's stable cast iron base and high-rigidity cast iron beam ensure excellent precision retention over time.
3）Optimized Structure for High Performance
The machine structure is optimized using finite element analysis (FEA) to deliver fast dynamic response and high accuracy.
4）High-Efficiency Tool Changing
Equipped with a standard 24-tool BT40 arm-type tool magazine, offering high tool-change efficiency with a time of just 2.0 seconds.
5）High-Torque 150mm Mechanical Spindle
The 150mm high-torque mechanical spindle supports multiple processes, including milling, drilling, and tapping.
6）Advanced Chip Removal System
Comes with a standard internal screw-type chip conveyor, with the option to add an external chain-type chip conveyor for high-efficiency automatic chip removal.
Ⅱ）Application Area
The G-V1013 is ideal for processing complex parts such as medium to large-sized box components, plates, discs, valves, and housings. It is particularly suited for industries like automotive, laser equipment, automation, energy, rail transportation, and mold manufacturing, offering multi-variety and small-to-medium batch production capabilities.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 1300*1000 |
| Distance from table to spindle nose (mm) | 180~680 | |
| Maximum load-bearing weight ( Kg) | ||
| journey | X-direction travel (mm) | 1300 |
| Travel in Y direction (mm) | 1000 | |
| Z travel (mm) | 500 | |
| Spindle | Spindle power (K w) | 7.5/11 |
| Spindle maximum speed (rpm) | 12 000 | |
| Spindle diameter (mm) | φ150 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | BT40 | |
| Feed rate | Maximum dry run feed speed (m/min) | 24 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.01(500) |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.005 | |
| Tool magazine | Tool magazine capacity | 24T |
| Tool magazine form | Knife arm disc knife magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 18 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
|
| Weight (Approx. weight: Kg) | 8600 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
