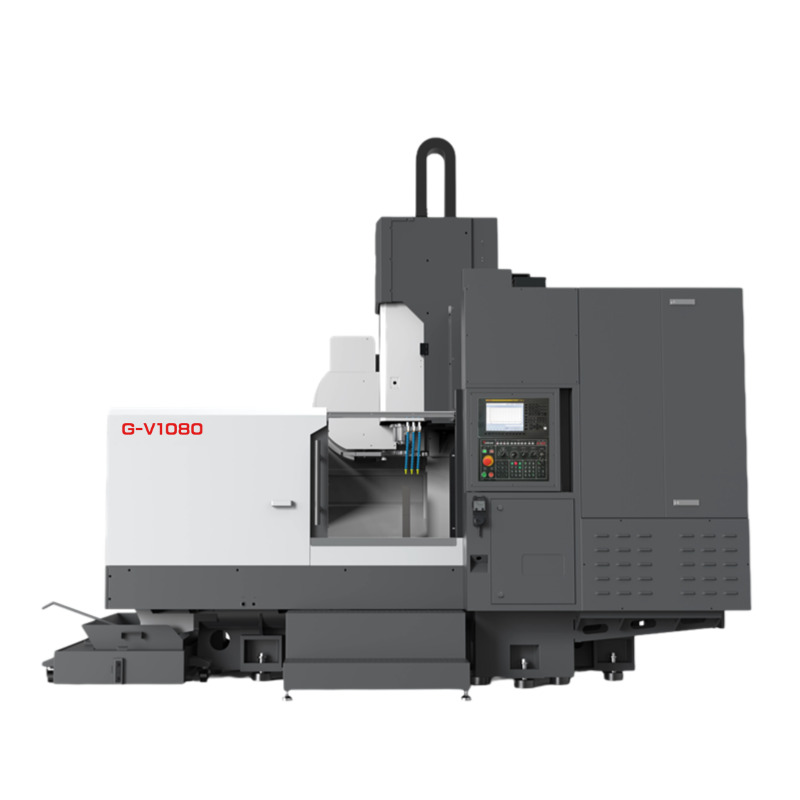

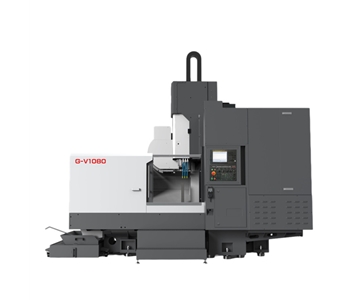

G-V1080 Gantry Processing Machine
Ⅰ） Product Characteristics
1）Compact and Efficient Layout
The machine is designed with a compact and efficient layout, requiring minimal floor space.
2）Sturdy Cast Iron Base and High-Rigidity Beam
The stable cast iron base and high-rigidity beam ensure excellent precision retention over extended periods.
3）Optimized Structural Design for High Performance
Using finite element analysis (FEA), the structure is optimized to meet the demands of fast dynamic response and high accuracy.
4）High-Efficiency Tool Changing
Standard 24-tool BT40 arm-type tool magazine with high tool-change efficiency, reducing tool-change time to just 2.0 seconds.
5）150mm High-Torque Mechanical Spindle
Equipped with a powerful 150mm high-torque spindle, capable of handling multiple processes such as milling, drilling, and tapping.
6）Advanced Chip Removal System
Comes with a standard internal screw-type chip conveyor, with an optional external chain-type chip conveyor for high-efficiency automatic chip removal.
Ⅱ）Application Area
The G-V1080 is ideal for processing complex medium to large-sized components such as boxes, plates, discs, valves, and housings. It is particularly suited for industries such as automotive, laser equipment, automation, energy, rail transportation, and mold manufacturing, offering multi-variety and small-to-medium batch production capabilities.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 1000*800 |
| Distance from table to spindle nose (mm) | 180~680 | |
| Maximum load-bearing weight ( Kg) | ||
| journey | X-direction travel (mm) | 1000 |
| Travel in Y direction (mm) | 800 | |
| Z travel (mm) | 500 | |
| Spindle | Spindle power (K w) | 7.5/11 |
| Spindle maximum speed (rpm) | 12 000 | |
| Spindle diameter (mm) | φ150 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | BT40 | |
| Feed rate | Maximum dry run feed speed (m/min) | 24 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.01(500) |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.005 | |
| Tool magazine | Tool magazine capacity | 24T |
| Tool magazine form | Knife arm disc knife magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 18 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
|
| Weight (Approx. weight: Kg) | 7400 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
