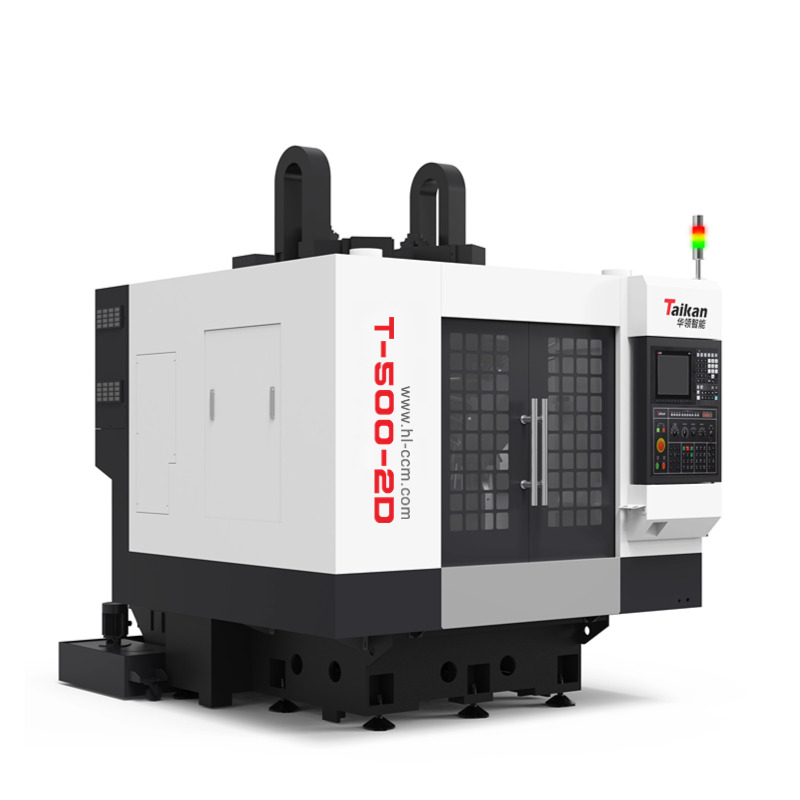

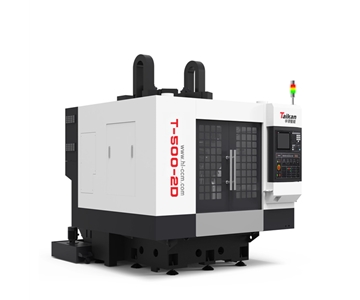

T-500-2D Dual-channel Drilling Machine
Ⅰ） Product Characteristics
1）High-Stability, High-Performance CNC System
Equipped with a Syntec CNC system that ensures both stability and high performance.
2）Heavy-Duty Marble Bed and High-Rigidity Cast Beam
Provides a stable foundation with high rigidity, minimizing deformation during high-speed cutting.
3）High-Speed Cutting
Capable of stable, high-speed cutting without deformation, ensuring consistent machining quality.
4）Dual High-Torque Spindles
Allows for simultaneous machining of multiple products, increasing efficiency.
5）Multi-Process Capability
Can perform a wide variety of machining operations such as milling, drilling, and tapping in quick succession.
6）Independent Operation of Channels
Each channel can be independently operated, with separate tuning and compensation for different tasks.
Ⅱ）Application Area
The T-500-2D is ideal for the automatic, continuous machining of complex parts such as medium and small-sized box components, plates, discs, valves, and shells in a single clamping. It is widely used in industries such as precision parts, 5G products, hardware, automotive components, medical devices, and fields like 3C (computer, communication, and consumer electronics) and new energy.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 620*400 |
| Distance from table to spindle nose (mm) | 180~500 | |
| Maximum load-bearing weight ( Kg) | ||
| journey | X-direction travel (mm) | 400 |
| Travel in Y direction (mm) | 500 | |
| Z travel (mm) | 320 | |
| Spindle | Spindle power (K w) | 3.7/5.5 |
| Spindle maximum speed (rpm) | 20 000 | |
| Spindle diameter (mm) | φ100 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | BT30 | |
| Feed rate | Maximum dry run feed speed (m/min) | 36 |
| Maximum cutting feed rate (m/min) | 20 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.008 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.005 | |
| Tool magazine | Tool magazine capacity | 21T*2 |
| Tool magazine form | Inclined disc knife magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 24 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
|
| Weight (Approx. weight: Kg) | 5200 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
