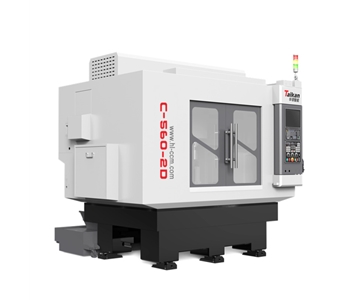

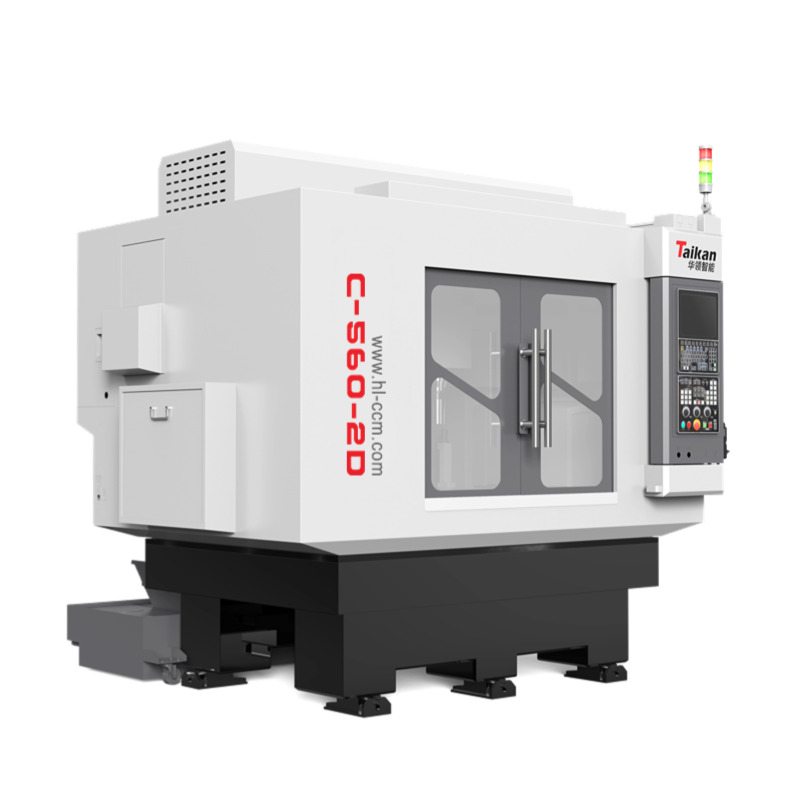

C-560-2D Dual-channel Engraving Processing Machine
Ⅰ） Product Characteristics
1）Fixed-Beam Gantry Structure
The machine features a fixed-beam gantry structure for enhanced stability during machining.
2）Marble Body Structure
Constructed with a marble body, offering excellent vibration resistance and thermal stability.
3）Dual-Channel CNC System
Equipped with a single CNC system that controls two independent channels, allowing for separate compensation for precise machining.
4）Large Travel Worktable Design
Large travel range (Y600, X500) with optional high and low columns, supports integration with 4-axis and 4.5-axis for multi-process operations.
5）Standard 21-Tool Servo Tool Magazine
Comes standard with a 21-tool servo-driven tool magazine for efficient tool changes and multi-process capability.
Ⅱ）Application Area
1）C-560-2D is ideal for precision machining of aluminum alloy components in the 3C industry, such as mobile phone frames, buttons, SIM card trays, camera brackets, tablet components, and laptop parts.
2）Also suitable for the precise machining of small aluminum or stainless steel parts in smart home and wearable technology applications.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 500*600 |
| Distance from table to spindle nose (mm) | 155~355 | |
| Maximum load-bearing weight ( Kg) | ||
| journey | X-direction travel (mm) | 500 |
| Travel in Y direction (mm) | 600 | |
| Z travel (mm) | 200 | |
| Spindle | Spindle power (K w) | 4.0 |
| Spindle maximum speed (rpm) | 40 000 | |
| Spindle diameter (mm) | φ80 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | ISO 20 | |
| Feed rate | Maximum dry run feed speed (m/min) | 15 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.006 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.004 | |
| Tool magazine | Tool magazine capacity | 21T*2 |
| Tool magazine form | Full Umbrella Servo Tool Changer | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 16 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
|
| Weight (Approx. weight: Kg) | 5000 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
