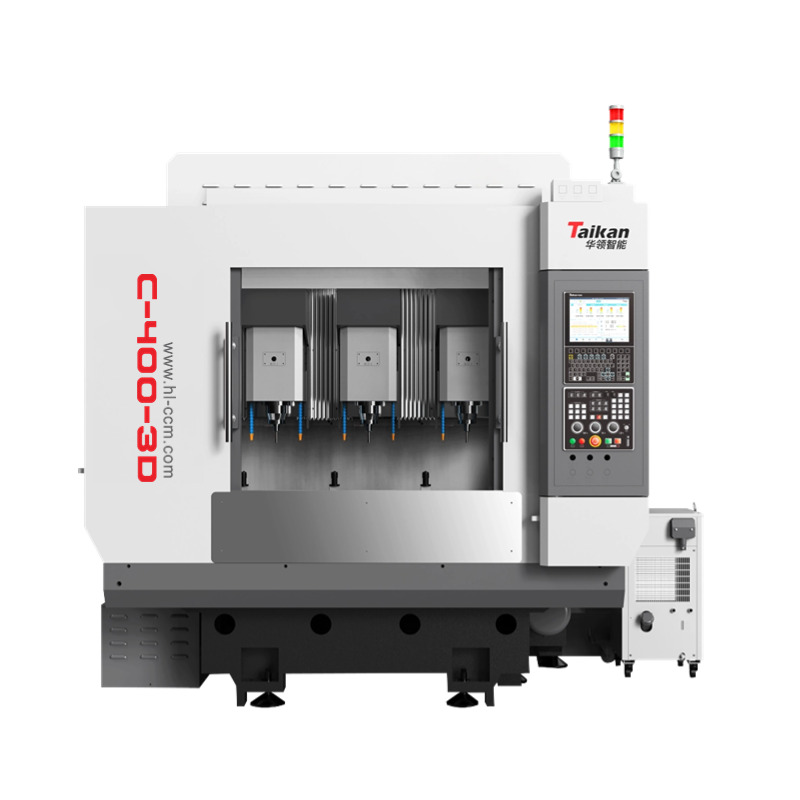

C-400-3D Three-channel Engraving Processing Machine
Ⅰ） Product Characteristics
1）Cast Iron Bed and Beam Structure
The machine bed and beam are made of cast iron, with the entire structure optimized using finite element analysis (FEA). This provides superior precision stability compared to similar machines.
2）Three-Spindle, Three-Channel Design
Combines the efficiency of a three-Spindle machine with the capability of independent compensation for each channel, ensuring stable dimensional accuracy. It delivers 2.5-3 times the efficiency of single-Spindle machines.
3）Standard 21-Tool Chain-Type Tool Magazine
Large tool capacity provides the capability to complete complex parts in a single clamping. The tool magazine’s protective design ensures long-term stable machining performance.
Ⅱ）Application Area
The C-400-3D is ideal for the roughing and finishing of parts such as mobile phone frames, SIM card trays, hinges, tablet casings, and 5G-related plates, shells, and box components in the 3C industry. It is also suited for the mass production of panels and cover parts in industries such as instrumentation and electronics.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 420*500 |
| Distance from table to spindle nose (mm) | 155~355 | |
| Maximum load-bearing weight ( Kg) | ||
| journey | X-direction travel (mm) | 400 |
| Travel in Y direction (mm) | 400 | |
| Z travel (mm) | 200 | |
| Spindle | Spindle power (K w) | 6.0 |
| Spindle maximum speed (rpm) | 36 000 | |
| Spindle diameter (mm) | φ100 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | ISO 25 | |
| Feed rate | Maximum dry run feed speed (m/min) | 15 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.004 | |
| Tool magazine | Tool magazine capacity | 21T*3 |
| Tool magazine form | Chain servo tool magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 29 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
|
| Weight (Approx. weight: Kg) | 5000 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
