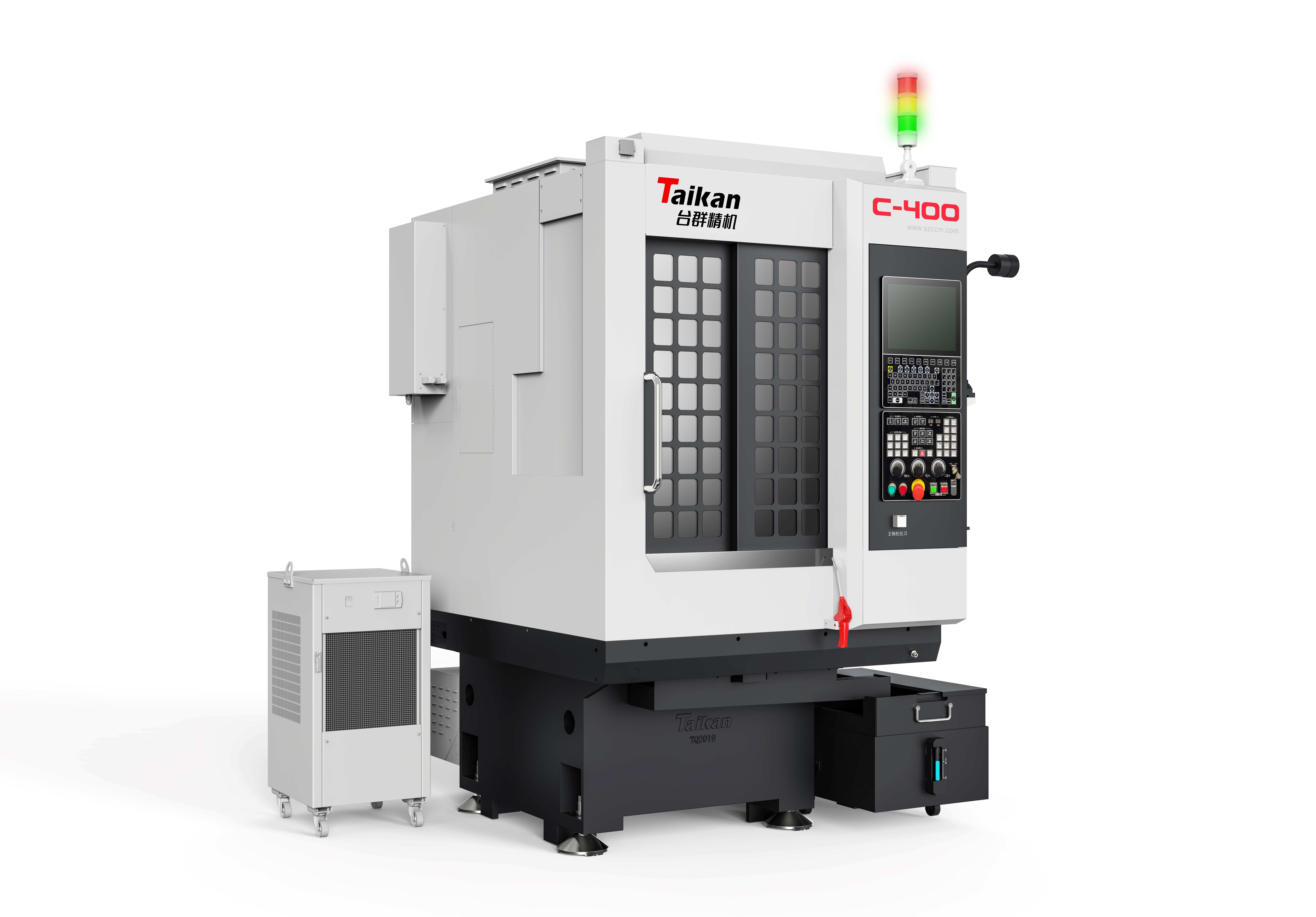

C-400E Single-spindle Engraving Processing Machine
Ⅰ） Product Characteristics
1）Syntec High-Speed, High-Precision CNC System
Powered by the advanced Syntec CNC system, ensuring high-speed and high-precision control.
2）Fixed-Beam Gantry Design
Cast iron bed and beam provide excellent rigidity and stability, ensuring consistent machining accuracy.
3）Compact Design
The compact footprint reduces the required floor space, ideal for space-constrained workshops.
4）15-Tool Servo Tool Magazine
Equipped with a 15-tool servo-driven tool magazine to support efficient multi-process machining.
Ⅱ）Application Area
The C-400E is designed for precision machining of small aluminum alloy components and copper parts.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 400*400 |
| Distance from table to spindle nose (mm) | 160~310 | |
| Maximum load-bearing weight ( Kg) | 100 | |
| journey | X-direction travel (mm) | 400 |
| Travel in Y direction (mm) | 400 | |
| Z travel (mm) | 150 | |
| Spindle | Spindle power (K w) | 4.0 |
| Spindle maximum speed (rpm) | 40 000 | |
| Spindle diameter (mm) | φ80 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | ISO 20 | |
| Feed rate | Maximum dry run feed speed (m/min) | 15 |
| Maximum cutting feed rate (m/min) | 8 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.004 | |
| Tool magazine | Tool magazine capacity | 15T |
| Tool magazine form | Semi-umbrella servo tool magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 8 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
1550*1450*2082 |
| Weight (Approx. weight: Kg) | 1900 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
