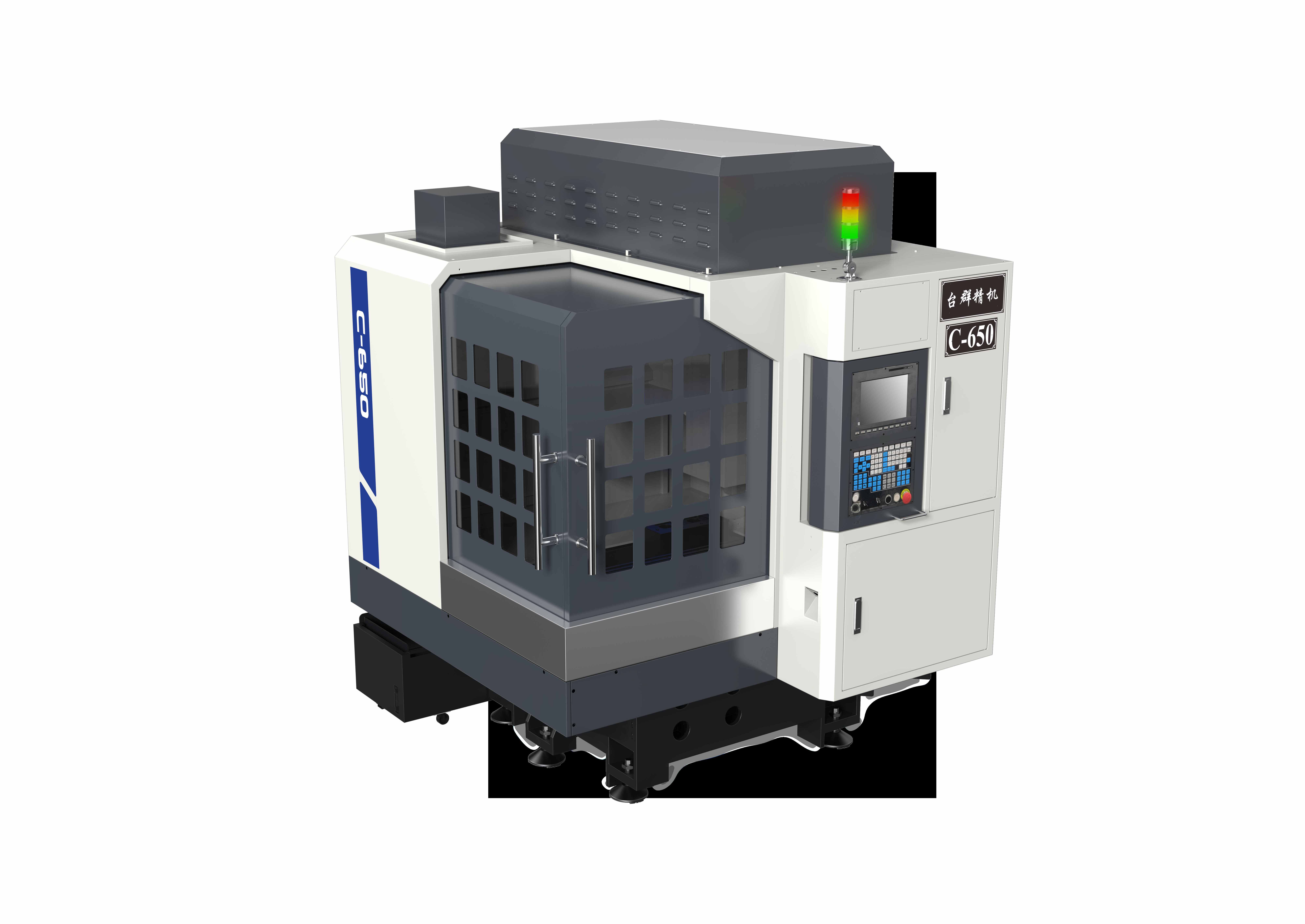

C-650 Single-spindle Engraving Processing Machine
Ⅰ） Product Characteristics
1）Syntec 22MA CNC System
Equipped with the advanced Syntec 22MA CNC system for reliable control and precision.
2）Sturdy Cast Iron Bed and Beam
Provides a highly stable and rigid foundation for precise machining.
3）Optional Upgrades
Offers optional accessories such as a probe, 4th axis, 12-tool magazine, and oil mist collector to enhance functionality.
4）High Load-Bearing and Positioning Accuracy
Designed to handle heavy loads with high positioning precision for demanding machining tasks.
5）Fully Enclosed Sheet Metal Design
Ensures a clean and safe working environment.
6）Superior Dust Protection
Advanced dust-proofing extends the machine’s lifespan and protects sensitive components.
Ⅱ）Application Area
The C-650 is widely used for precision mold core machining, copper electrodes for molds, batch processing of aluminum products, shoe mold manufacturing, jig processing, and in the watch and eyewear industries. It is also ideal for precision machining of aluminum alloy, stainless steel parts, copper electrodes, and small copper molds.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 600*500 |
| Distance from table to spindle nose (mm) | 120~380 | |
| Maximum load-bearing weight ( Kg) | ||
| journey | X-direction travel (mm) | 600 |
| Travel in Y direction (mm) | 500 | |
| Z travel (mm) | 260 | |
| Spindle | Spindle power (K w) | 7.5 |
| Spindle maximum speed (rpm) | 24 000 | |
| Spindle diameter (mm) | φ120 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | BT30 | |
| Feed rate | Maximum dry run feed speed (m/min) | 15 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.008 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.005 | |
| Tool magazine | Tool magazine capacity | 12T |
| Tool magazine form | Semi-umbrella servo tool magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 13.5 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
|
| Weight (Approx. weight: Kg) | 3500 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
Photos and information of products in the picture album are for your reference only.and they may not refect the actual products. Our ablums and products are subject to change without prior notice.
