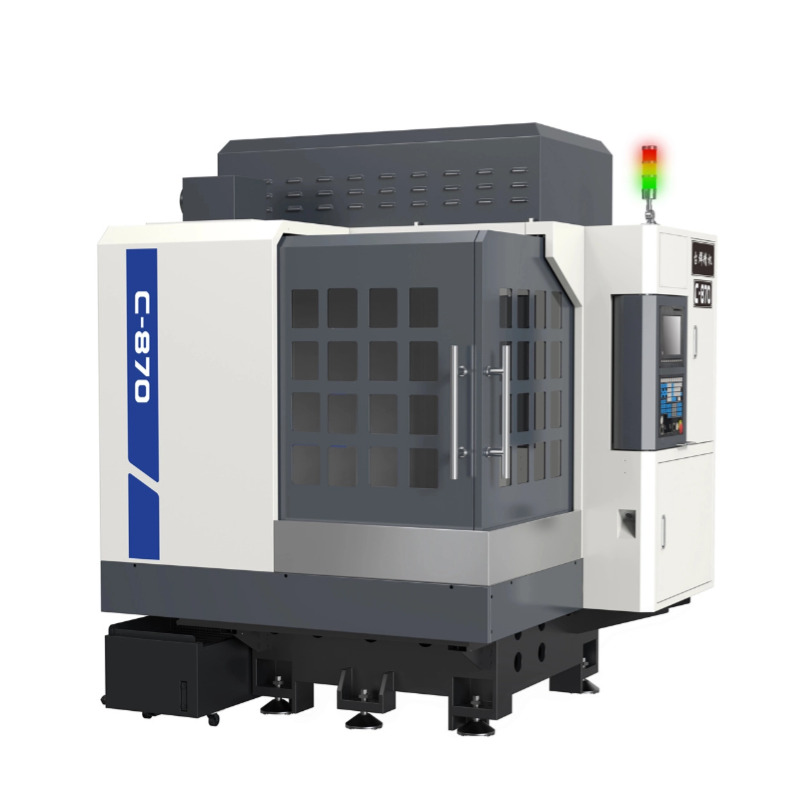

C-870 Single-spindle Engraving Processing Machine
Ⅰ） Product Characteristics
1）Syntec 22MA CNC System
Powered by the advanced Syntec 22MA CNC system, ensuring precision and reliable control.
2）Cast Iron Bed with Multiple Aging Treatments
The cast iron bed undergoes multiple aging treatments, enhancing rigidity and stability.
3）New Vibration Suppression Technology
Improves tool life by reducing vibration during machining operations.
4）High Rigidity and Stability
The machine is designed for high rigidity, ensuring stable and precise machining over time.
5）High-Precision Imported Components
Key imported components provide high precision and reliability.
6）Large-Capacity Servo Tool Magazine
Equipped with a large servo tool magazine to support multi-process machining.
Ⅱ）Application Area
The C-870 is widely used for precision roughing and finishing of mold cores, copper electrodes for molds, batch processing of aluminum products, shoe mold manufacturing, jig processing, and in the watch and eyewear industries. It is also ideal for the precision machining of aluminum alloy, stainless steel parts, copper electrodes, and small copper molds.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 800*700 |
| Distance from table to spindle nose (mm) | 120~440 | |
| Maximum load-bearing weight ( Kg) | ||
| journey | X-direction travel (mm) | 700 |
| Travel in Y direction (mm) | 800 | |
| Z travel (mm) | 320 | |
| Spindle | Spindle power (K w) | 7.5 |
| Spindle maximum speed (rpm) | 24 000 | |
| Spindle diameter (mm) | φ120 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | BT30 | |
| Feed rate | Maximum dry run feed speed (m/min) | 30 |
| Maximum cutting feed rate (m/min) | 12 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.008 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.005 | |
| Tool magazine | Tool magazine capacity | 12T |
| Tool magazine form | Semi-umbrella servo tool magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 13.5 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
|
| Weight (Approx. weight: Kg) | 4500 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
Photos and information of products in the picture album are for your reference only.and they may not refect the actual products. Our ablums and products are subject to change without prior notice.
