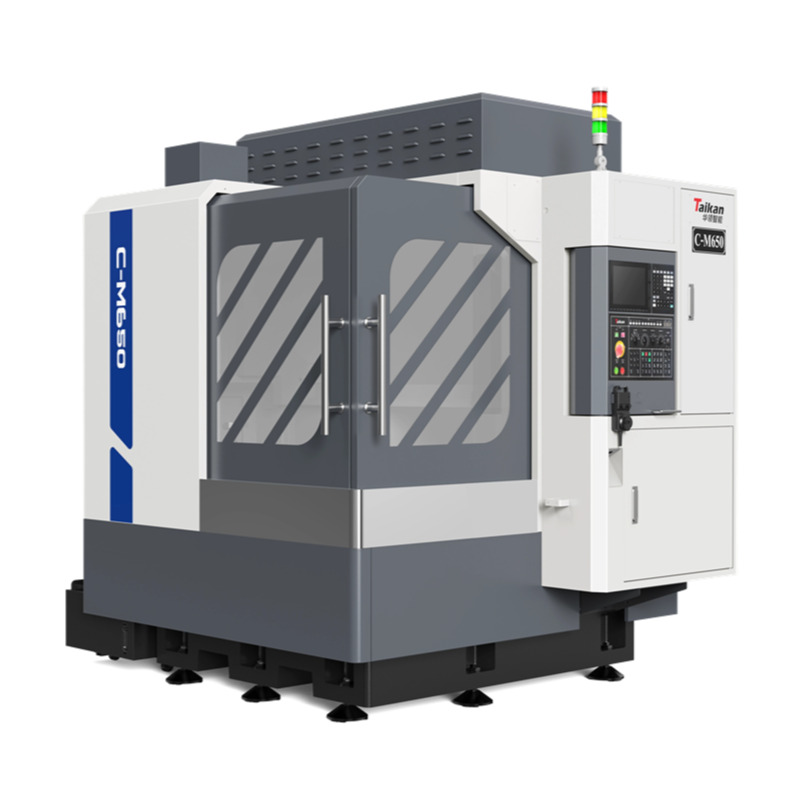

C-M650 Single-spindle Engraving Processing Machine
Ⅰ） Product Characteristics
1）Mitsubishi E80A CNC System
Powered by the high-performance Mitsubishi E80A CNC system for precision and control.
2）Gantry-Style Mineral Casting Bed and Beam
The bed and beam are constructed from mineral casting, offering superior vibration resistance for stable machining.
3）High-Precision Components
Standard configuration includes NSK ball screws and THK linear guides, ensuring stable and reliable machining accuracy.
4）Optional Accessories
Offers optional accessories such as a linear scale and probe to meet various precision requirements.
5）16-Tool Servo Tool Magazine
Equipped with a 16-tool servo-driven tool magazine for efficient tool changes.
Ⅱ）Application Area
The C-M650 is ideal for the precision machining of copper electrodes, molds, precision parts, medical instruments, and precision instruments. It is specifically designed for industries that require high-precision components.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 600*500 |
| Distance from table to spindle nose (mm) | 120~380 | |
| Maximum load-bearing weight ( Kg) | 300 | |
| journey | X-direction travel (mm) | 600 |
| Travel in Y direction (mm) | 500 | |
| Z travel (mm) | 260 | |
| Spindle | Spindle power (K w) | 8.5 |
| Spindle maximum speed (rpm) | 30 000 | |
| Spindle diameter (mm) | φ120 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | HSK-E40 | |
| Feed rate | Maximum dry run feed speed (m/min) | 15 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.003 | |
| Tool magazine | Tool magazine capacity | 13T |
| Tool magazine form | Semi-umbrella servo tool magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 13 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
2230*1820*2350 |
| Weight (Approx. weight: Kg) | 4800 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
Photos and information of products in the picture album are for your reference only.and they may not refect the actual products. Our ablums and products are subject to change without prior notice.
