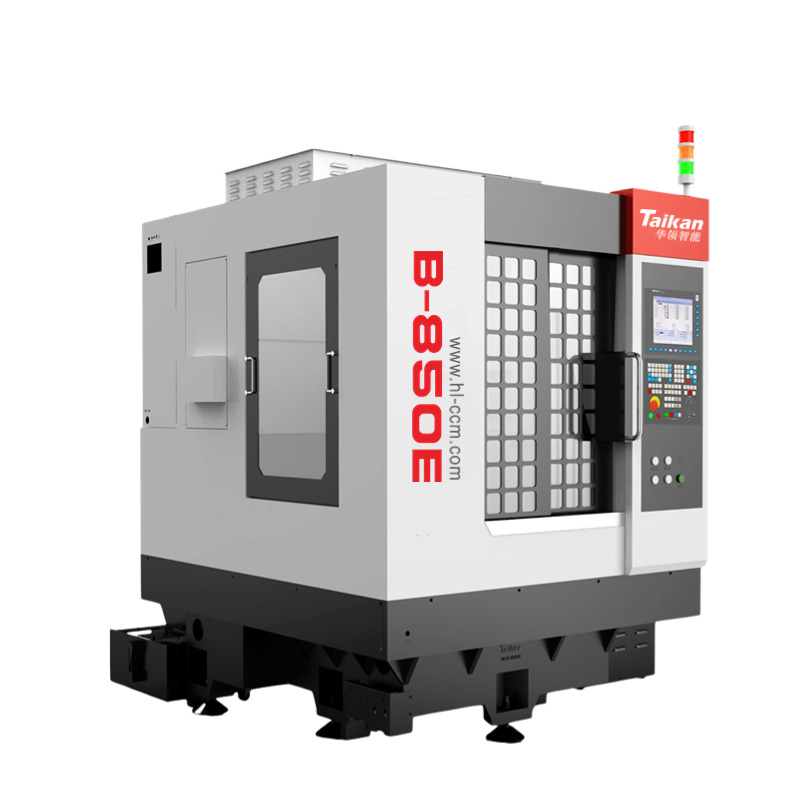

B-850E Single-spindle Engraving Processing Machine
Ⅰ） Product Characteristics
1）Cast Iron Bed and Beam Structure
The machine's bed and beam are made of cast iron, and its structure is optimized using computer finite element analysis (FEA) to ensure superior stability and precision retention compared to similar machines.
2）Customizable High-Speed Precision Spindles
Offers the flexibility to choose from different high-speed precision electric spindles based on the specific machining requirements of different products.
3）XY-Axis Travel of 850*600mm
Capable of handling larger workpieces with this extended travel range.
4）Semi-Umbrella 13-Tool Magazine
Features a stable and mature 13-tool semi-umbrella type tool magazine for efficient multi-process machining.
Ⅱ）Application Area
1）B-850E is ideal for edge grinding, hole drilling, chamfering, and thinning processes for automotive display glass, tablet cover glass, and other glass materials.
2）Suitable for the grinding and milling of glass and acrylic materials in the smart home appliances and optoelectronics industries.
3）It excels in roughing and finishing mobile phone frames, tablet casings, and 5G-related panels, shells, and box components in the 3C industry.
4）Ideal for mass production of panels and cover parts in the instrumentation, electronics, and electrical appliance industries.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 850*600 |
| Distance from table to spindle nose (mm) | 180~330 | |
| Maximum load-bearing weight ( Kg) | ||
| journey | X-direction travel (mm) | 800 |
| Travel in Y direction (mm) | 600 | |
| Z travel (mm) | 150 | |
| Spindle | Spindle power (K w) | 6.0 |
| Spindle maximum speed (rpm) | 36 000 | |
| Spindle diameter (mm) | φ100 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | HSK-E32 | |
| Feed rate | Maximum dry run feed speed (m/min) | 18 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.006 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.005 | |
| Tool magazine | Tool magazine capacity | 13T |
| Tool magazine form | Semi-umbrella servo tool magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 10.5 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
|
| Weight (Approx. weight: Kg) | 2850 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
Photos and information of products in the picture album are for your reference only.and they may not refect the actual products. Our ablums and products are subject to change without prior notice.
