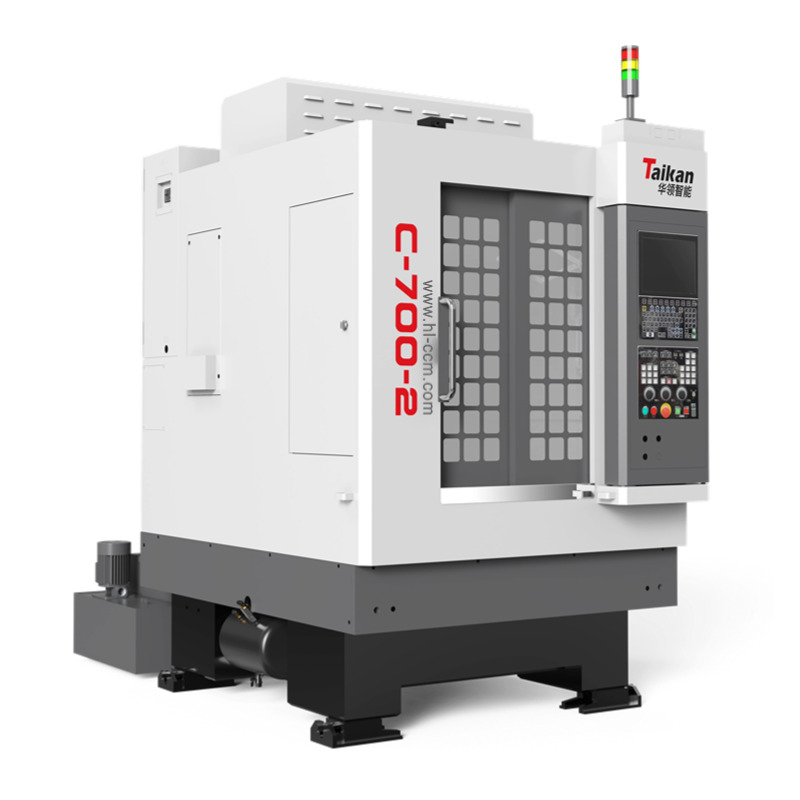

C-700-2 Multi-spindle Engraving Processing Machine
Ⅰ） Product Characteristics
1）Natural Granite Bed and Beam
The machine features a natural granite bed and beam, providing excellent vibration absorption and corrosion resistance.
2）Customizable High-Speed Precision Spindle
Flexibility to choose different high-speed precision spindles based on specific product requirements.
3）Optimized Compact Design with 12-Tool Linear Magazine
Equipped with a 12-tool linear tool magazine, the machine is designed to minimize its footprint while maintaining effective travel distances, increasing overall factory space efficiency.
Ⅱ）Application Area

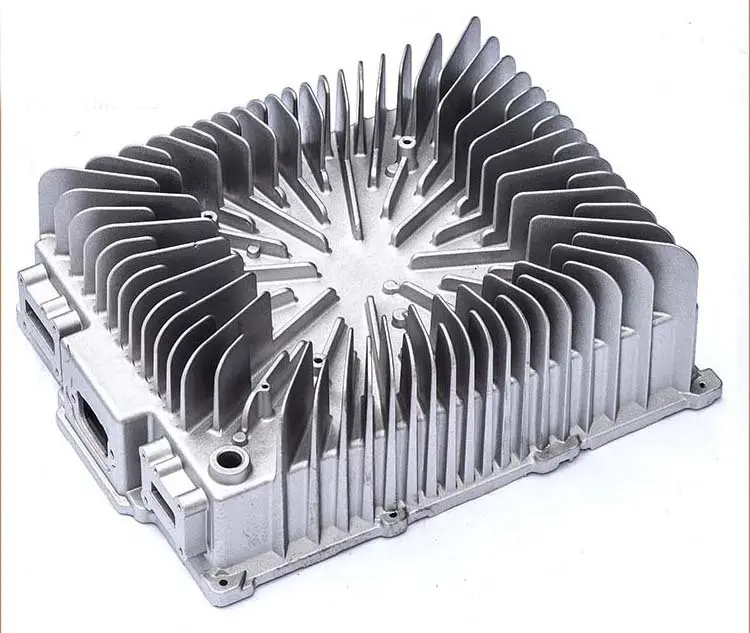

1）C-700-2 is ideal for the mass production of small aluminum alloy components for 3C consumer electronics, including mobile phone camera brackets, buttons, and smartwatch housings.
2）It is also suitable for the mass production of panels and cover parts in industries such as instrumentation, electronics, and electrical appliances.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 700*500 |
| Distance from table to spindle nose (mm) | 60~210 | |
| Maximum load-bearing weight ( Kg) | ||
| journey | X-direction travel (mm) | 350 |
| Travel in Y direction (mm) | 500 | |
| Z travel (mm) | 150 | |
| Spindle | Spindle power (K w) | 2.5 |
| Spindle maximum speed (rpm) | 60 000 | |
| Spindle diameter (mm) | φ62 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | T11 | |
| Feed rate | Maximum dry run feed speed (m/min) | 30 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.004 | |
| Tool magazine | Tool magazine capacity | 12T * 2 |
| Tool magazine form | Straight line knife magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 9.5 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
|
| Weight (Approx. weight: Kg) | 2600 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
Photos and information of products in the picture album are for your reference only.and they may not refect the actual products. Our ablums and products are subject to change without prior notice.
