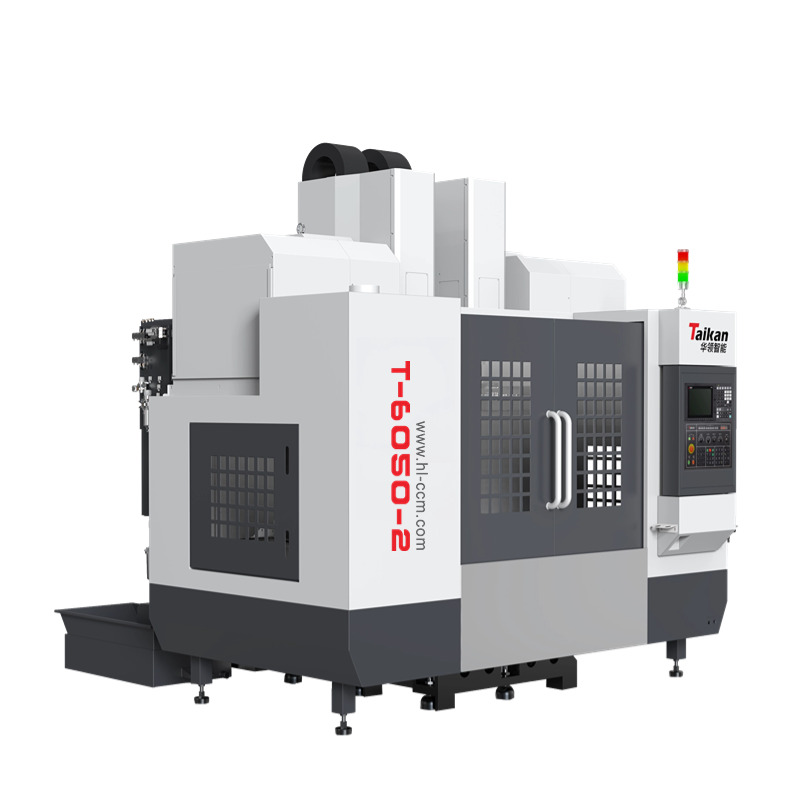

T-6050-2 Dual-spindle Vertical Processing machine
Ⅰ） Product Characteristics
1）Cast Iron Bed and Beam
The machine is constructed with a cast iron bed and beam, providing high rigidity and stable precision over time.
Equipped with the high-performance and reliable Mitsubishi M80B control system, ensuring superior control and stability.
3）Dual 24-Tool Arm-Type Tool Magazine
Features dual 24-tool arm-type tool magazines, significantly improving machining efficiency.
4）Generous XYZ1/Z2 Travel
XYZ1/Z2 axis travel of 600500600/600mm allows for the machining of large-sized parts.
5）Simultaneous Dual-Spindle Machining
Both spindles can simultaneously process multiple products, providing high efficiency and fast response times.
Ⅱ）Application Area
1)The T-6050-2 is ideal for the mass production of box-type products, hardware components, and new energy box-type products.
2）It is also suitable for the mass production of 5G box-type products, valve bodies, and disk-shaped components.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 1400*500 |
| Distance from table to spindle nose (mm) | 180~780 | |
| Maximum load-bearing weight ( Kg) | ||
| journey | X-direction travel (mm) | 600 |
| Travel in Y direction (mm) | 500 | |
| Z travel (mm) | 600 | |
| Spindle | Spindle power (K w) | 7.5/11 |
| Spindle maximum speed (rpm) | 12 000 | |
| Spindle diameter (mm) | φ150 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | BT40 | |
| Feed rate | Maximum dry run feed speed (m/min) | 48 |
| Maximum cutting feed rate (m/min) | 20 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.008 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.005 | |
| Tool magazine | Tool magazine capacity | 24T*2 |
| Tool magazine form | Knife arm type knife magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 27 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
|
| Weight (Approx. weight: Kg) | 7800 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
Photos and information of products in the picture album are for your reference only.and they may not refect the actual products. Our ablums and products are subject to change without prior notice.
