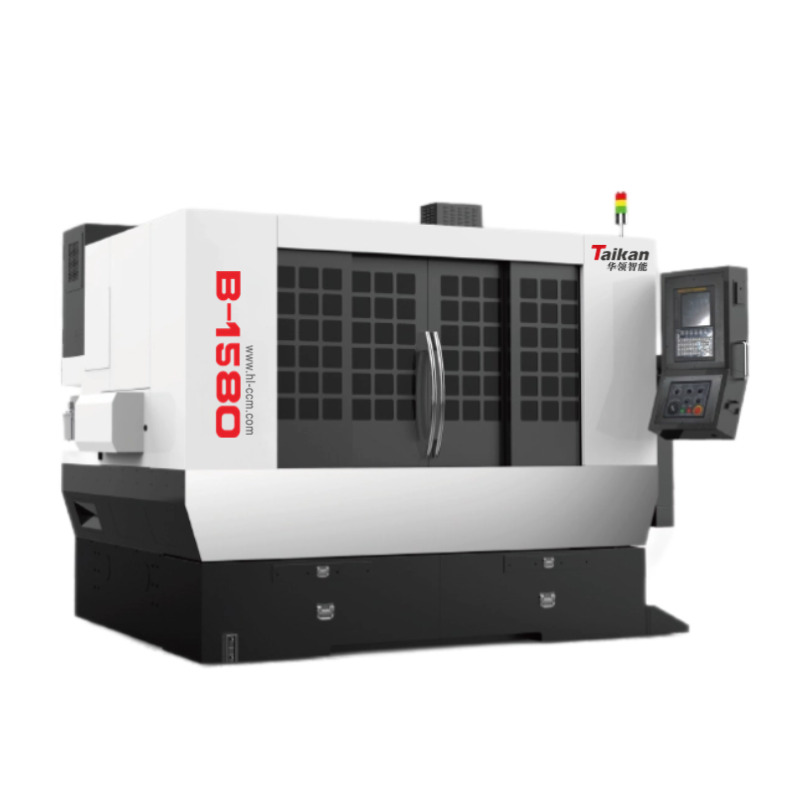

B-1580 Single-spindle Engraving Processing Machine
Ⅰ） Product Characteristics
1）Natural Granite Bed and Beam
The bed and beam are made from natural granite, offering excellent vibration absorption and corrosion resistance.
2）Imported High-Precision Components
Equipped with high-precision imported components, including guides with strong load-bearing capabilities, high positioning accuracy, and minimal mechanical error.
3）XY-Axis Travel of 1500*800mm
Suitable for processing large workpieces with this extended travel range.
Ⅱ）Application Area
1）B-1580 is ideal for the edge grinding, hole drilling, chamfering, and thinning of automotive display glass, tablet cover glass, and other glass materials.
2）Suitable for the grinding and milling of glass and acrylic materials in industries such as smart home appliances, TV frames, and advertising lightboxes.
3）It is also excellent for the processing of glass, ceramics, sapphire, and composite materials across various industries.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 400*400 |
| Distance from table to spindle nose (mm) | 160~310 | |
| Maximum load-bearing weight ( Kg) | 100 | |
| journey | X-direction travel (mm) | 400 |
| Travel in Y direction (mm) | 400 | |
| Z travel (mm) | 150 | |
| Spindle | Spindle power (K w) | 4.0 |
| Spindle maximum speed (rpm) | 40 000 | |
| Spindle diameter (mm) | φ80 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | ISO 20 | |
| Feed rate | Maximum dry run feed speed (m/min) | 15 |
| Maximum cutting feed rate (m/min) | 8 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.004 | |
| Tool magazine | Tool magazine capacity | 15T |
| Tool magazine form | Semi-umbrella servo tool magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 8 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
1550*1450*2082 |
| Weight (Approx. weight: Kg) | 1900 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
