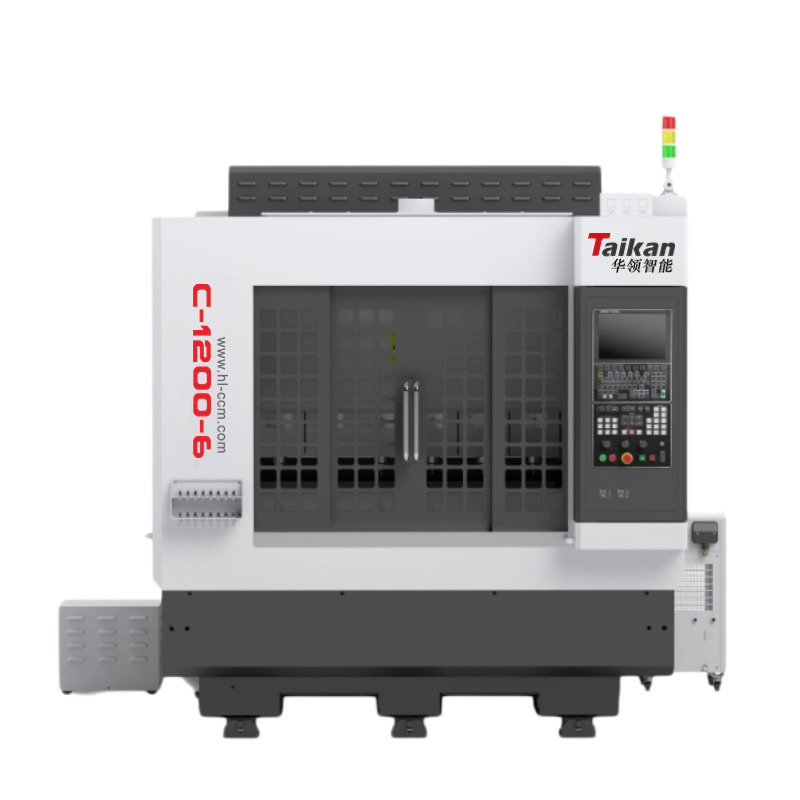

C-1200-6 Multi-spindle Engraving Processing Machine
Ⅰ） Product Characteristics
1）Natural Granite Bed and Beam
The bed and beam are made from natural granite, offering excellent vibration absorption and corrosion resistance.
2）Customizable High-Speed Precision Spindle
Flexibility to choose high-speed precision spindles tailored to specific product requirements.
3）20-Tool Linear Tool Magazine
Comes standard with a 20-tool linear tool magazine with ample capacity to support the high-speed, stable machining of complex parts.
4）Six-Spindle Rigid Tapping Capability
Capable of performing rigid tapping with six spindles simultaneously, further enhancing productivity.
Ⅱ）Application Area
1）C-1200-6 is ideal for the mass production of small aluminum alloy components for 3C consumer electronics, such as mobile phone camera brackets, buttons, and smartwatch housings.
2）It is also suitable for the mass production of panels and cover parts in industries like instrumentation, electronics, and electrical appliances.
Ⅲ）Product Parameters
| name | project | Parameters |
| workbench | Table size (mm ) | 1260*500 |
| Distance from table to spindle nose (mm) | 50~200 | |
| Maximum load-bearing weight ( Kg) | ||
| journey | X-direction travel (mm) | 210 |
| Travel in Y direction (mm) | 450 | |
| Z travel (mm) | 150 | |
| Spindle | Spindle power (K w) | 2.5 |
| Spindle maximum speed (rpm) | 60 000 | |
| Spindle diameter (mm) | φ62 | |
| Spindle tool change method | Pneumatic tool changer | |
| Shank form | ISO 20 | |
| Feed rate | Maximum dry run feed speed (m/min) | 30 |
| Maximum cutting feed rate (m/min) | 10 | |
| Machine tool accuracy | Positioning accuracy: X/Y/Z (mm) | 0.005 |
| Repeated positioning accuracy: X/Y/Z (mm) | 0.004 | |
| Tool magazine | Tool magazine capacity | 20T*6 |
| Tool magazine form | Straight line knife magazine | |
| power source | Air pressure (Mpa) | ≥0.6 |
| Electricity demand (Kw) | 25 | |
| Other parameters | Dimensions (front and rear * left and right * up and down mm) |
|
| Weight (Approx. weight: Kg) | 4700 | |
| Whether to configure network transmission and monitoring functions |
Have | |
| Whether to configure the tool setter | Have |
Photos and information of products in the picture album are for your reference only.and they may not refect the actual products. Our ablums and products are subject to change without prior notice.
