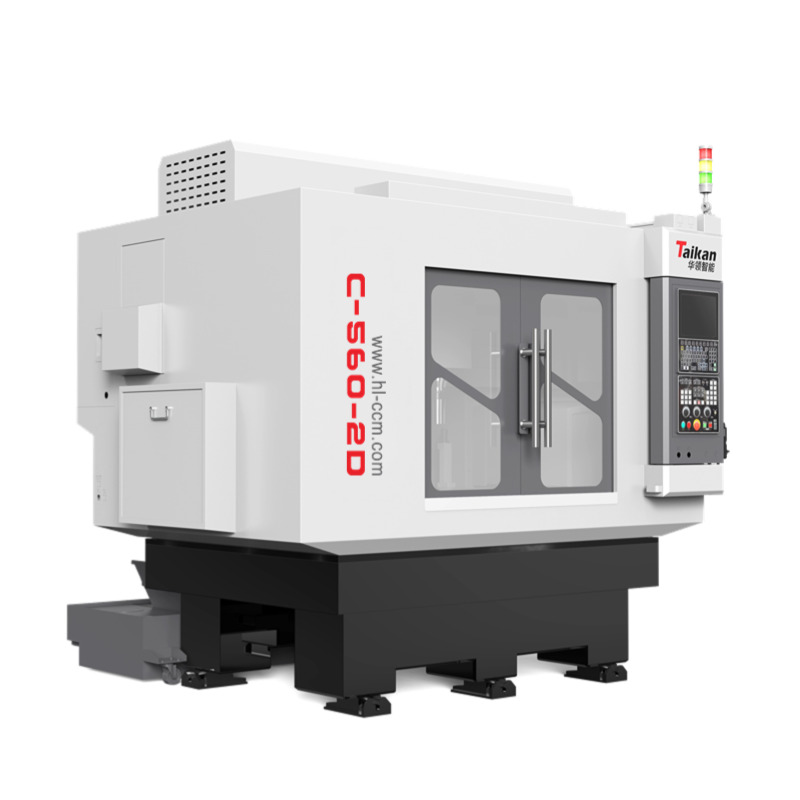

Characteristic of C-560-2D Multi-Worktabel Hight-Speed Machining Center
|
Fixed-Beam Gantry Structure Marble Body Structure Dual-Channel CNC System Standard 21-Tool Servo Tool Magazine |
 |
Application of C-560-2D Multi-Worktabel Hight-Speed Machining Center
C-560-2D is ideal for precision machining of aluminum alloy components in the 3C industry, such as mobile phone frames, buttons, SIM card trays, camera brackets, tablet components, and laptop parts.
Specifications of C-560-2D Multi-Worktabel Hight-Speed Machining Center
|
name |
project |
Parameters |
|
workbench |
Table size (mm ) |
500*600 |
|
Distance from table to spindle nose (mm) |
155~355 |
|
|
Maximum load-bearing weight ( Kg) |
||
|
journey |
X-direction travel (mm) |
500 |
|
Travel in Y direction (mm) |
600 |
|
|
Z travel (mm) |
200 |
|
|
Spindle |
Spindle power (K w) |
4.0 |
|
Spindle maximum speed (rpm) |
40 000 |
|
|
Spindle diameter (mm) |
φ80 |
|
|
Spindle tool change method |
Pneumatic tool changer |
|
|
Shank form |
ISO 20 |
|
|
Feed rate |
Maximum dry run feed speed (m/min) |
15 |
|
Maximum cutting feed rate (m/min) |
10 |
|
|
Machine tool accuracy |
Positioning accuracy: X/Y/Z (mm) |
0.006 |
|
Repeated positioning accuracy: X/Y/Z (mm) |
0.004 |
|
|
Tool magazine |
Tool magazine capacity |
21T*2 |
|
Tool magazine form |
Full Umbrella Servo Tool Changer |
|
|
power source |
Air pressure (Mpa) |
≥0.6 |
|
Electricity demand (Kw) |
16 |
|
|
Other parameters |
Dimensions (front and rear * |
|
|
Weight (Approx. weight: Kg) |
5000 |
|
|
Whether to configure network |
Have |
|
|
Whether to configure the tool setter |
Have |
The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
